Description

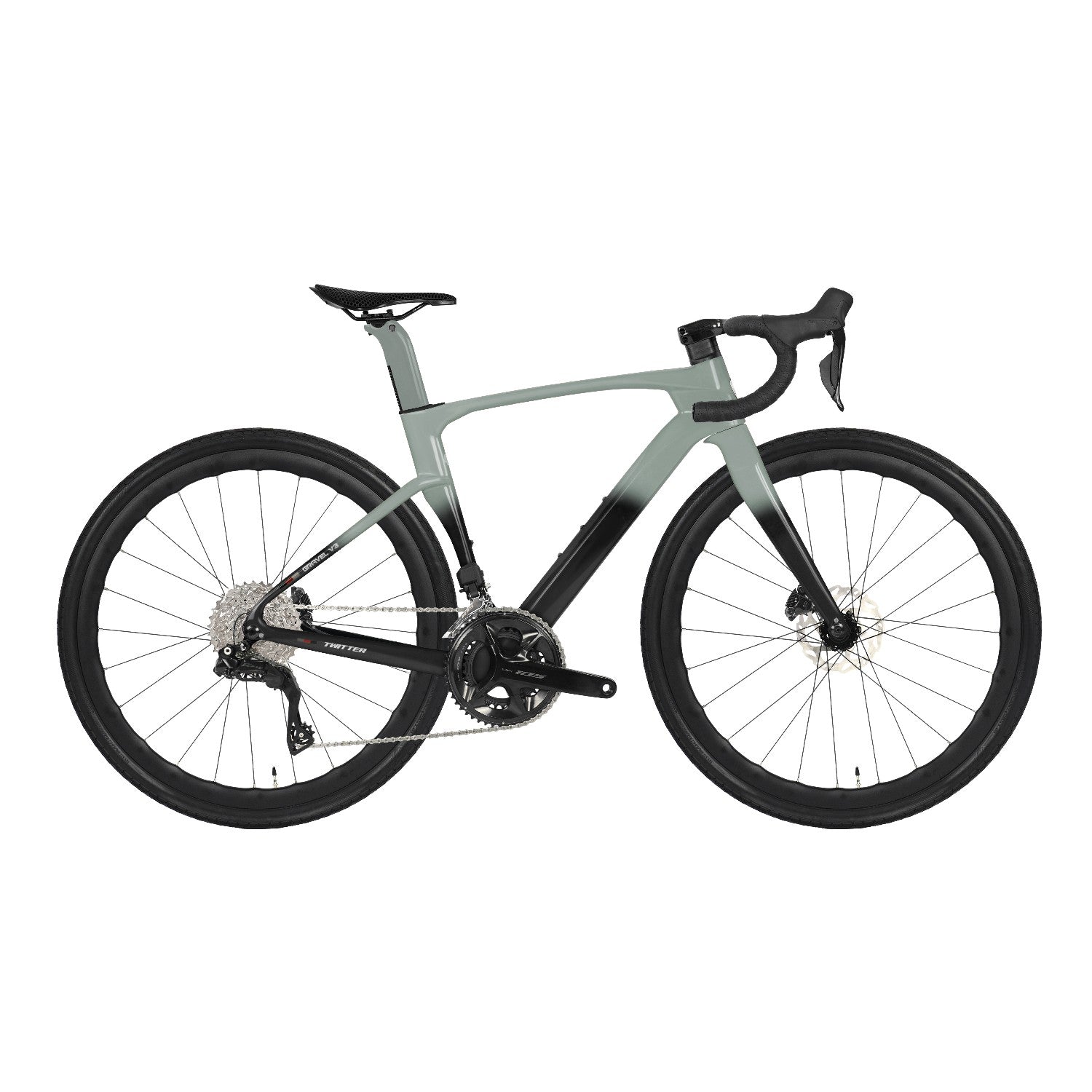

v brake gravel bike Gravel V3 PRO (Premium Edition) – Full Carbon Gravel Bike SHIMANO 105 R7170/R7150 — 2×12 (DI2 Electronic) / Black OrangeKey Components Wheel Size: 700C Frame Heights: 45 48 50 52 54 cm Colors: Multiple colors available (including Full Holographic) Weight: 9. 6 kg (all configurations) Frame & Structure Frame: Gravel V3, high modulus carbon fiber, XC geometry, internal cable routing, thru axle 12142 mm Fork: Gravel V3 carbon fork, 700C, thru axle 12100 mm Handlebar: TW 3K carbon fiber integrated cockpit (38080 40090 420100 mm), full internal cable routing, 30 outward
Key Components
- Wheel Size: 700C
- Frame Heights: 45 / 48 / 50 / 52 / 54 cm
- Colors: Multiple colors available (including Full Holographic)
- Weight: 9.6 kg (all configurations)
Frame & Structure
- Frame: Gravel V3, high modulus carbon fiber, XC geometry, internal cable routing, thru-axle 12×142 mm
- Fork: Gravel V3 carbon fork, 700C, thru-axle 12×100 mm
- Handlebar: TW 3K carbon fiber integrated cockpit (380×80 / 400×90 / 420×100 mm), full internal cable routing, 30° outward flare
- Seat Post: High modulus carbon fiber aero racing design (optional finishes available)
- Clamps: Hidden screw integration system
- Headset: CNC aluminum alloy sealed bearings (52×52 mm)
- Bottom Bracket: T47 threaded system (variant dependent)
🚴 Drivetrain Options
Variant 1 – Shimano 105 R7120 Mechanical Hydraulic 2×12
- System: Shimano 105 R7120 2×12 mechanical hydraulic
- Shifters: Shimano 105 R7120 dual control levers
- Front Derailleur: Shimano 105 R7100 2-speed
- Rear Derailleur: Shimano 105 R7100 12-speed
- Crankset: Shimano 105 R7100 Hollowtech II, 34–50T
- Cassette: Shimano 105 R7100, 11–34T
- Chain: Shimano HG6100 12-speed
- Bottom Bracket: T47×24 mm threaded
- Brakes: Shimano 105 R7070 hydraulic disc, 160/160 mm centerlock
Variant 2 – Shimano 105 R7170 Di2 Electronic 2×12
- System: Shimano 105 R7170 Di2 electronic wireless 2×12
- Shifters: Shimano 105 R7170 Di2 hydraulic levers
- Front Derailleur: Shimano 105 R7150 Di2 2-speed
- Rear Derailleur: Shimano 105 R7150 Di2 12-speed
- Crankset: Shimano 105 R7100 Hollowtech II, 34–50T
- Cassette: Shimano 105 R7101, 11–34T
- Chain: Shimano HG-M7100 12-speed
- Bottom Bracket: T47×24 mm threaded
- Brakes: Shimano 105 R7170 hydraulic disc, RT70 centerlock 160/160 mm
Variant 3 – SRAM Rival eTap AXS Wireless 1×12
- System: SRAM Rival eTap AXS wireless electronic 1×12
- Shifters: SRAM Rival eTap AXS hydraulic wireless
- Rear Derailleur: SRAM Rival XPLR eTap AXS 12-speed
- Crankset: SRAM Rival DUB Wide, 42T
- Cassette: SRAM XG-1251 XPLR, 10–44T
- Chain: SRAM Rival 12-speed
- Bottom Bracket: T47×29 mm DUB threaded
- Brakes: SRAM Rival hydraulic disc, 160/160 mm centerlock
Wheelset & Tires
- Hubs: RS aluminum alloy + carbon fiber body, 4 sealed bearings, Center Lock, F12×100 / R12×142, 24H front / 24H rear
- Rims: AL7005 alloy wave profile, W19×H38 mm, 700C
- Spokes: Circular 14G
- Tires: MAXXIS Overdrive Excel, 700×40C, wire bead
Braking System
- Shimano 105 R7070 / R7170 hydraulic disc (Shimano variants)
- SRAM Rival hydraulic disc (SRAM variant)
- Rotors: Shimano RT70 centerlock 160/160 mm
Additional Components
- Saddle: 3D printed ergonomic saddle
- Pedals: Lightweight aluminum alloy skid-resistant
- Cables: JAGWIRE performance cables
- Belt: PU anti-slip ergonomic coating
Included Accessories
- Safety reflectors (front, rear, handlebar, seat post)
- Bottle cage (PC) + tool kit
- Manual + warranty card
